WARNING: This page is about a different variant/trim than selected.

01 01 07 (333)

Consisting of:

  1. 5 = 0496080 Belt
    NOTE: (Tensioning strap)

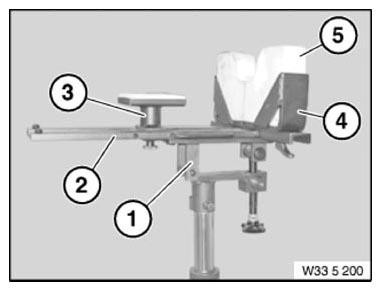

    Fig 1: Identifying Fixture (0496009)
    G09834864Courtesy of BMW OF NORTH AMERICA, INC.
  2. 5 = 0496079 Insert
    NOTE: (Insert) Foam material insert (1 set = 2 pieces)
  3. 4 = 0496078 Fixture
    NOTE: (Fixture for foam material insert) Discontinued, only available via complete tool
  4. 3 = 0496077 Upholstery

    Note:

  5. 2 = 0496020 Frame
    NOTE: (Main frame)
  6. 1 = 0496019 Joint

    Note:
