0494958 334492 Fixture Mechanical tool

WARNING: This page is about a different variant/trim than selected.
NOTE: (Fixture 3 and 4) Replaced by 31 5 250

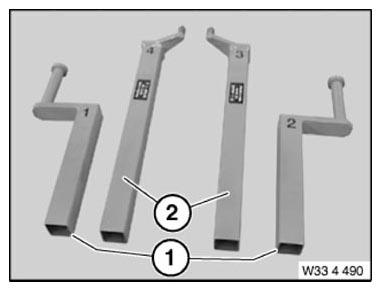

Fig 1: Identifying Fixture (0494958)
G09834871Courtesy of BMW OF NORTH AMERICA, INC.
