SI number

WARNING: This page is about a different variant/trim than selected.

01 15 04 (117)

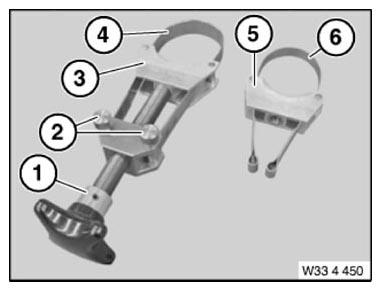

Fig 1: Identifying Tension Strap And Fixture (0494928)

Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

6 = 0495043 Tensioning strap
NOTE: (Tensioning strap) Deletion, only available via tool set
5 = 0495042 Fixture
NOTE: (Fixture for diameter 51 mm) Deletion, only available via tool set
4 = 0495041 Tensioning strap
NOTE: (Tensioning strap) Deletion, only available via tool set
3 = 0495040 Fixture
NOTE: (Fixture for diameter 46 mm) Deletion, only available via tool set
2 = 0495039 Screw
NOTE: (Knurled screws (2 x))
1 = 0495038 Spindle
NOTE: (Spindle with handle) Deletion, only available via tool set
