0495317 334425 Angle Mechanical tool

WARNING: This page is about a different variant/trim than selected.
NOTE: (Support angle) discontinued, available as part of set of special tools only

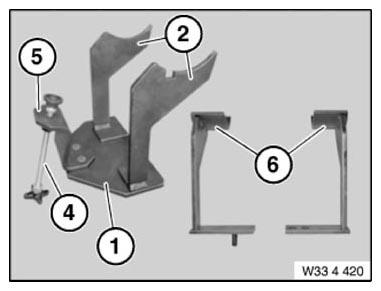

Fig 1: Identifying Support Angle (0495317)
G09834816Courtesy of BMW OF NORTH AMERICA, INC.
