0494831 334423 Angle Mechanical tool

WARNING: This page is about a different variant/trim than selected.

Replaced by: 83300495317

NOTE: (Support angle) Replaced by 33 4 425. (0 495 317)

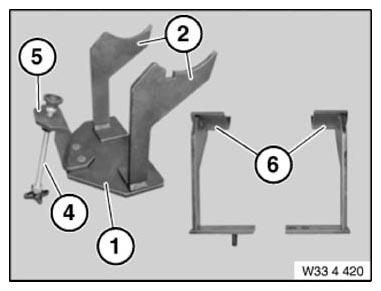

Fig 1: Identifying Support Angle (0494831)
G09834815Courtesy of BMW OF NORTH AMERICA, INC.
