0494611 334420 Fixture Mechanical tool

WARNING: This page is about a different variant/trim than selected.

Replaced by: 83300496009

NOTE: For supporting rear axle final drive during removal and installation. Is replaced by 33 5 200

Consisting of:

4 = 0495575 Adapter
NOTE: (Fixture adapter) Fixture for E85 Z4 M. SI 01 10 06 (264) discontinued, available as part of set of special tools only

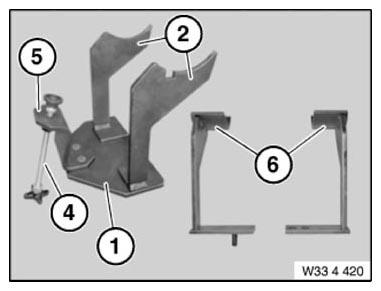

Fig 1: Identifying Fixture (0494611)
Courtesy of BMW OF NORTH AMERICA, INC.
5 = 0495317 Angle
NOTE: (Support angle) discontinued, available as part of set of special tools only
4 = 0494832 Spindle
NOTE: (Spindle with thrust piece) Discontinued, only available via tool set
2 = 0494831 Angle
NOTE: (Support angle) Replaced by 33 4 425. (0 495 317)
2 = 0494830 Adapter
NOTE: (Adapter kit) discontinued, available as part of set of special tools only
1 = 0494829 Plate
NOTE: (Base plate) Replaced by 33 4 420 (0 494 611)
