SI number

WARNING: This page is about a different variant/trim than selected.

01 05 99 (426)

Consisting of:

  1. 9 = 0496539 Synchronising key

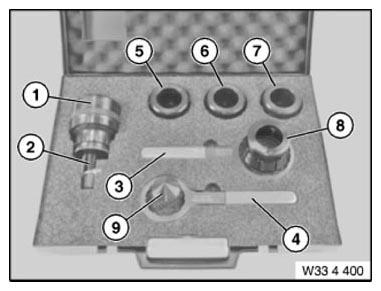

    Fig 1: Identifying Ring And Synchronising Key (0493416)
    G09834848Courtesy of BMW OF NORTH AMERICA, INC.
  2. 8 = 0496538 Ring
  3. 7 = 0494617 Pliers
    NOTE: (clamping ring (55...61 mm)) Model series: E67 No longer available separately, only via complete tool set 0493416 = 33 4 400.
  4. 6 = 0493821 Pliers
    NOTE: (Clamping ring (50 to 55 mm)) No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.
  5. 5 = 0493820 Pliers
    NOTE: (Clamping ring (45 to 51 mm)) No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.
  6. 4 = 0493819 Wrench
    NOTE: (Ignition key) Discontinued, only available via complete tool
  7. 3 = 0493818 Wrench
    NOTE: (Ignition key) Discontinued, only available via complete tool
  8. 2 = 0493817 Spindle
    NOTE: No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.
  9. 1 = 0493816 Basic body
    NOTE: No longer available separately, only available as part of complete tool set 0493416 = 33 4 400.
