SI number

01 15 05 (200)

Consisting of:

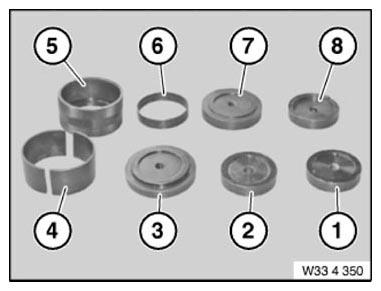

Fig 1: Identifying Washer, Ring And Bush (0495339)

Courtesy of BMW OF NORTH AMERICA, INC.

1. 8 = 0495442 Washer
   NOTE: (Shaped disc (hydraulic rubber mount)) Deletion, only available via tool set
2. 7 = 0495441 Washer
   NOTE: (Support disc (hydraulic rubber mount)) Deletion, only available via tool set
3. 6 = 0495440 Ring
   NOTE: (Clamping ring) discontinued, available as part of set of special tools only
4. 5 = 0495344 Bush
   NOTE: (Bush) Deletion, only available via tool set
5. 4 = 0495343 Shell
   NOTE: (Bearing shells) 2 pieces Deletion, only available via tool set
6. 3 = 0495342 Washer
   NOTE: (Support disc (installation)) Deletion, only available via tool set
7. 2 = 0495341 Washer
   NOTE: (Disc (installation)) Deletion, only available via tool set
8. 1 = 0495340 Washer
   NOTE: (Disc (removal)) Deletion, only available via tool set
