01 02 99 (417)

Consisting of:

9 = 0492406 Synchronising key
NOTE: (Synchronising key (2 x)) With countersunk screw - model series: E39/2, E65, E67, E87

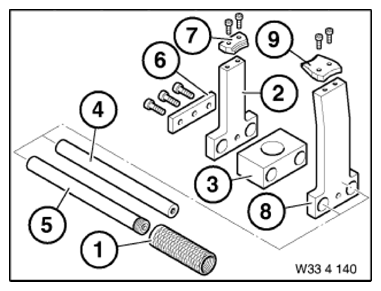

Fig 1: Identifying Rod, Plate, Pipe And Shaped Part (0492397)
Courtesy of BMW OF NORTH AMERICA, INC.
8 = 0492405 Shaped part
NOTE: (Shaped part) 2 pieces Model series: E39/2, E65, E67, RR1
7 = 0492404 Synchronising key
NOTE: (Synchronising key (2 x)) With screws - model series: E38, E39, E46 Deletion, only available via tool set
6 = 0492403 Plate
NOTE: (Fixing plate) With screws Deletion, only available via tool set
5 = 0492402 Rod
NOTE: (Guide rod) With thread dog point
4 = 0492401 Rod
NOTE: (Guide rod)
3 = 0492400 Shaped part
NOTE: (Shaped part)
2 = 0492399 Shaped part
NOTE: (Shaped part) 2 pieces Model series: E38, E39, E46 Deletion, only available via tool set
1 = 0492398 Pipe
NOTE: (Threaded tube) Deletion, only available via tool set
