SI number

WARNING: This page is about a different variant/trim than selected.

01 01 89 (989)

Consisting of:

  1. 4 = 0492387 Shaped element
    NOTE: For pressing in
  2. 3 = 0492386 Holding sleeve
    NOTE: (Press-in sleeve)
  3. 2 = 0492385 Holding sleeve
    NOTE: (Press-out sleeve)
  4. 1 = 0492384 Holding sleeve
    NOTE: (Support sleeve) For pressing out

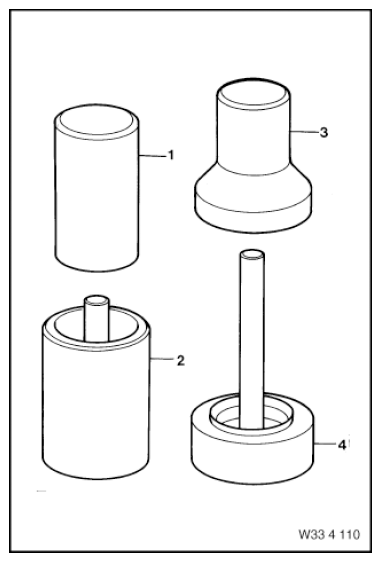

    Fig 1: Identifying Holding Sleeve And Shaped Element (0492383)
    G09834846Courtesy of BMW OF NORTH AMERICA, INC.
