Storage Location

WARNING: This page is about a different variant/trim than selected.

C14

C38

C13

Consisting of:

  1. 9 = 0492178 Spindle
    NOTE: For installing/model series: E36, E46 Replaced by 33 2 206. (0 496 069)

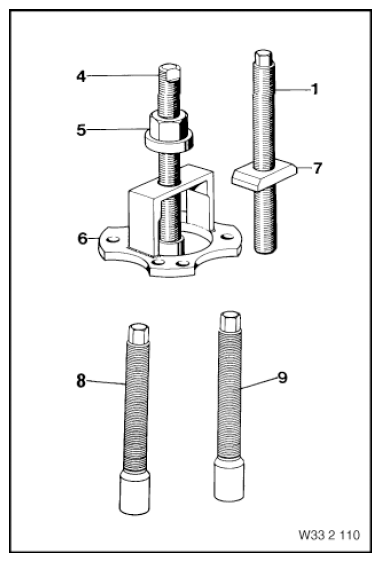

    Fig 1: Identifying Spindle, Shaped Part And Bridge (0492169)
    G09834850Courtesy of BMW OF NORTH AMERICA, INC.
  2. 8 = 0492177 Spindle
    NOTE: (Spindle for installation) Model series: E31, E52, E53, E60, E61, E65, E66, E67, E83 Replaced by 33 2 205. (0 496 068)
  3. 7 = 0492176 Shaped part
    NOTE: (Shaped part) Model series: E30, E31, E32, E36, E38, E39, E46, E53, E65, E66, E67, E83, E85 Replaced by 33 2 207/0 496 070
  4. 6 = 0492175 Bridge
    NOTE: New version 09/98 Model series: E30, E31, E32, E36, E38, E39, E46, E52, E53, E60, E61, E65, E66, E67, E83, E85, E90, RR1 Replaced by 332 201/0 496 063
  5. 5 = 0492174 Nut
    NOTE: (Nut with bearing) Model series: E30, E31, E32, E36, E38, E39, E46, E52, E53, E60, E61, E65, E66, E67, E83, E85, RR1 Replaced by 33 2 208/0 496 071
  6. 4 = 0492173 Spindle
    NOTE: For installing/model series: E30 Replaced by 33 2 204/0 496 067
  7. 1 = 0492172 Shaped part
    NOTE: (Shaped part) Model series: E30, E31, E32, E36, E38, E39, E46, E53, E65, E66, E85, RR1 Replaced by 33 2 117. (0 492 176)
  8. 1 = 0492171 Bridge
    NOTE: Replaced by 33 2 116. (0 492 175)
  9. 1 = 0492170 Spindle
    NOTE: (Pressure spindle) For pressing out. Series: E30, E31, E32, E36, E38, E39, E46, E53, E65, E66, E67, E83, E85 Replaced by 33 2 203. (0 496 066)
