0492136 331380 Device Mechanical tool

WARNING: This page is about a different variant/trim than selected.

NOTE: For determining the installation size of the bevel drive pinion in the rear axle final drive

Consisting of:

2 = 0492138 Washer
NOTE: (Measuring disc)
1 = 0492137 Holder
NOTE: (Dial gauge holder)

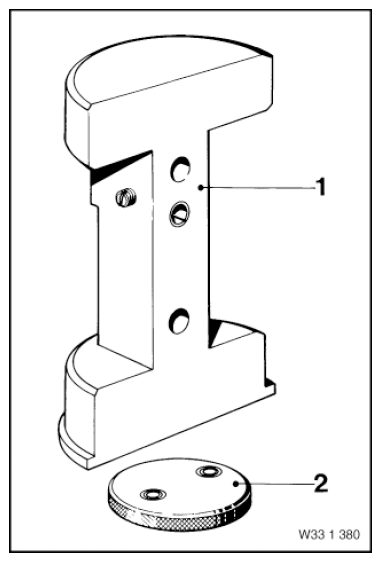

Fig 1: Identifying Washer And Holder (0492136)
Courtesy of BMW OF NORTH AMERICA, INC.
