Storage Location

WARNING: This page is about a different variant/trim than selected.

C18

C17

Consisting of:

  1. 2 = 0493266 Mandrel
    NOTE: Discontinued, can only be ordered using complete tool

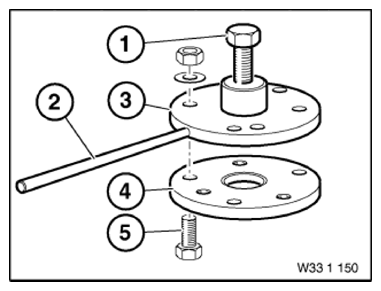

    Fig 1: Identifying Mandrel, Spindle And Screw (0492083)
    G09834856Courtesy of BMW OF NORTH AMERICA, INC.
  2. 1 = 0493265 Spindle
    NOTE: Discontinued, can only be ordered using complete tool
  3. 5 = 0494873 Screw
    NOTE: (countersunk screws M10x30 (3 x)) Transmission: GS6-57DZ, GS6-53BZ (G transmission) GS6-51DZ, GS6-51BZ (H transmission) Deletion, only available via tool set
  4. 4 = 0494872 Plate
    NOTE: (adapter plate) Transmission: GS6-57DZ, GS6-53BZ (G transmission) GS6-51DZ, GS6-51BZ (H transmission) Deletion, only available via tool set
  5. 3 = 0494631 Washer

    Note:
