SI number

WARNING: This page is about a different variant/trim than selected.

01 02 08 (425)

Consisting of:

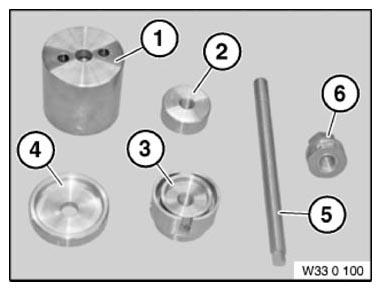

Fig 1: Identifying Spindle, Washer And Synchronising Key (0496388)

Courtesy of BMW OF NORTH AMERICA, INC.

6 = 0496396 Nut
NOTE: (Nut M14x1.5 with thrust bearing) Discontinued, only available via complete tool
5 = 0496395 Spindle
NOTE: (Spindle M14x1.5, length 190 mm) discontinued, available as part of set of special tools only
4 = 0496394 Washer
NOTE: (Shaped washer) Installing rubber mount
3 = 0496393 Synchronising key
NOTE: Installing rubber mount
2 = 0496392 Synchronising key
NOTE: Rubber mount removal Deletion, only available via tool set
1 = 0496391 Bush
NOTE: Rubber mount removal Deletion, only available via tool set
