SI number

WARNING: This page is about a different variant/trim than selected.

01 21 07 (410)

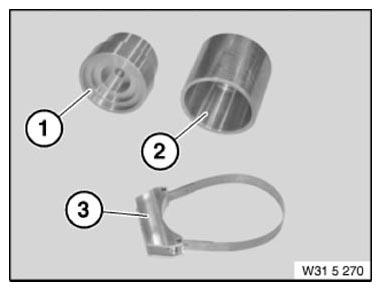

Fig 1: Identifying Tool (0496355)
G09834622Courtesy of BMW OF NORTH AMERICA, INC.

Consisting of:

  1. 3 = 0496358 Belt
    NOTE: (Tensioning strap) Only available as part of complete tool set 31 5 270 (83 30 0 496 355).
  2. 2 = 0496357 Bush
    NOTE: Only available as part of complete tool set 31 5 270 (83 30 0 496 355).
  3. 1 = 0496356 Synchronising key
    NOTE: Only available as part of complete tool set 31 5 270 (83 30 0 496 355).
