2210778 Tool set Minimum set: Mechanical tools Mechanical tool

WARNING: This page is about a different variant/trim than selected.

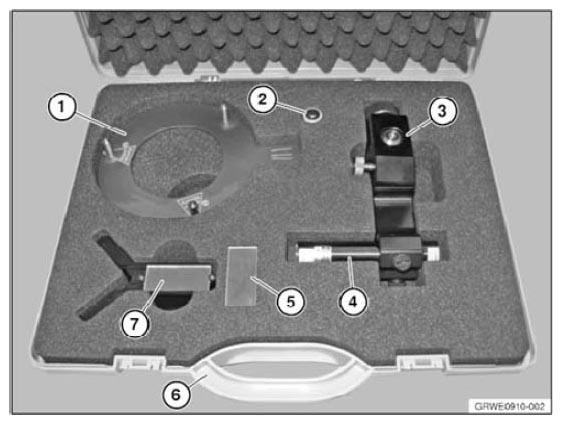

Fig 1: Identifying Tool Set (2210778)

Courtesy of BMW OF NORTH AMERICA, INC.

2210780

NOTE: 1 set (2 units) replacement for prism 83 30 2 210 780

4 = 2210779 Laser
Note:
3 = 2210785 Locating fixture
NOTE: For attaching and aligning the laser on the spring strut.
2 = 0496962 Battery
NOTE: commercially available battery 3V lithium (CR 123A)
1 = 2210783 Gauge
NOTE: For positioning the support bearing.
