33 55 041 Replacing anti-roll bar link for anti-roll bar on left or right
WARNING: This page is about a different variant/trim than selected.
Special tools required:

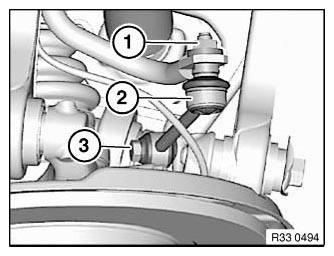

Release nut (1), brace with special tool 31 1 140
.
Installation note:
Replace self-locking nut.
Tightening torque 33 55 2AZ
.
Release screw (3).
Tightening torque 33 55 3AZ
.
Remove stabilizer link (2) towards top.
