33 52 161 Replacing support bearing (lower section) for rear left or right spring strut/shock absorber

Installation note:

1. All screws, nuts, bolts and hose clamps removed during the repair must be replaced.
2. Retaining elements on chassis and suspension and steering parts must be replaced.

Necessary preliminary tasks

• Remove REAR SHOCK ABSORBER .

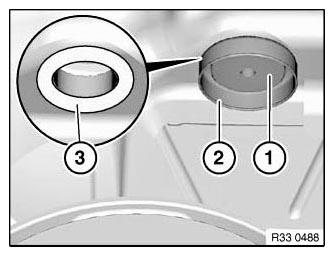

Press support bearing lower section (1) with seal grommet (2) out of shock absorber mounting.

Installation note:

Clean shock absorber mounting including contact surface (3) all round.

Insert support bearing lower section (1) in sealing grommet (2).

Fig 1: Identifying Sealing Grommet Components

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

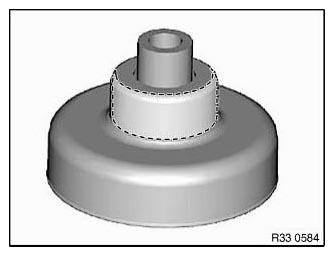

Coat sealing grommet as illustrated with Circolight and press into shock absorber mounting.

Fig 2: Identifying Sealing Grommet

Courtesy of BMW OF NORTH AMERICA, INC.
