Section 16 (Rear Axle - Repair - E90)
>>
General
>>
33 31... Overview of rear axle support with rubber mounts
33 31... Overview of rear axle support with rubber mounts
WARNING:
This page is about a different variant/trim than selected.

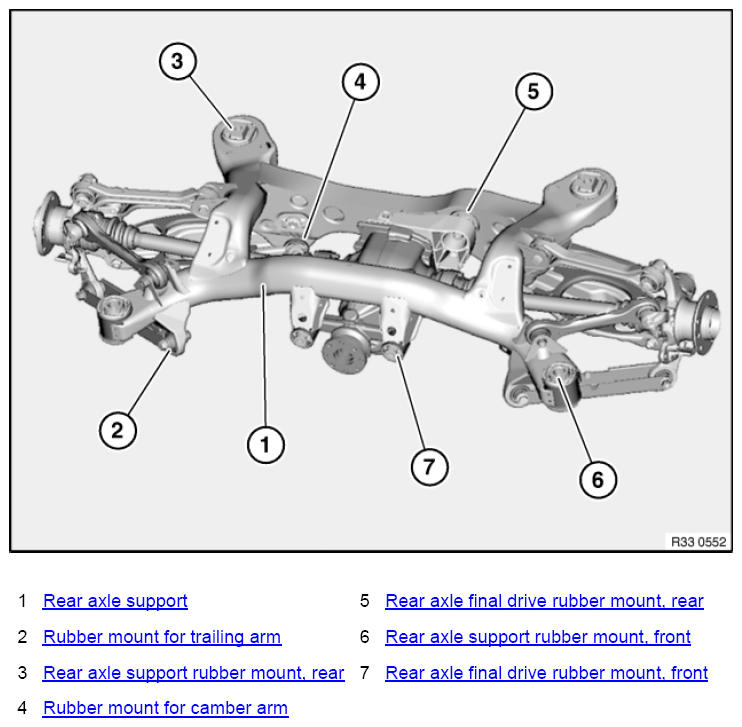

Fig 1: Overview Of Rear Axle Support With Rubber Mounts
Courtesy of BMW OF NORTH AMERICA, INC.
