33 11 151 Replacing shaft seal for drive flange left or right

Special tools required:

• 00 5 010
• 00 5 500
• 32 1 060
• 33 1 308
• 33 3 400
• 33 4 240
• 33 4 250
• 33 5 030

Necessary preliminary tasks

• REMOVE DRIVE FLANGE ON THE REAR AXLE FINAL DRIVE .
• If necessary, press of dust plate.

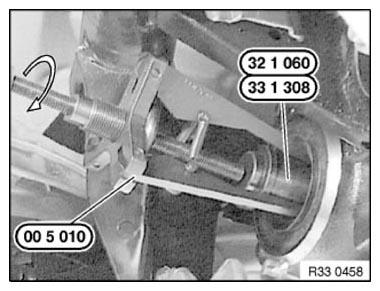

Use special tools 00 5 010 and 32 1 060 /33 1 308 to remove radial shaft seal

Fig 1: Removing Radial Shaft Seal Using Tool

Courtesy of BMW OF NORTH AMERICA, INC.

Coat housing sheet metal flange and sealing lips of new radial shaft seal with approved final drive oil. See REAR AXLE - OPERATING FLUIDS .

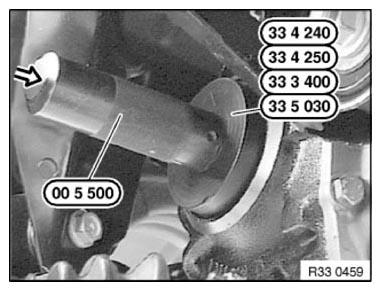

Drive in new radial shaft seal with following special tools (depending on REAR AXLE FINAL DRIVE /outer diameter) until limit position.

00 5 500 + 33 3 400 : 168K/L - 78x44x10

00 5 500 + 33 4 240 : 188K/L/LW - 90x44x10

00 5 500 + 33 4 250 : 215K/L/LW, 220K to 230K - 100x50x10

00 5 500 + 33 5 030: 210, 215 with lock - 76x50x10

Fig 2: Driving Radial Shaft Seal Using Tool

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

• Correct gearbox oil level/replace final drive oil  . See 0011... CHECKING/TOPPING UP OIL LEVEL IN REAR AXLE FINAL DRIVE .
