33 17... Replacing rubber mount

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Withdrawing rubber mount

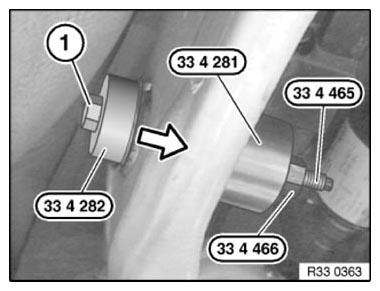

Pull out rubber mount with special tools 33 4 282 , 33 4 281 , 33 4 466 , 33 4 465 and nut (1).

Fig 1: Pulling Out Rubber Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Installing rubber mount

IMPORTANT: Coat bearing bush in rear axle support and new rubber mount with Circo Light.

Align rubber mount by way of elongated hole (1) to vehicle transversal direction.

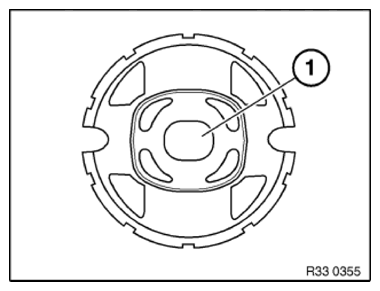

Fig 2: Identifying Rubber Mount Elongated Hole

Courtesy of BMW OF NORTH AMERICA, INC.

Insert rubber mount (1) in special tool 33 4 283 .

Align rubber mount (1) by way of elongated hole to vehicle transversal direction.

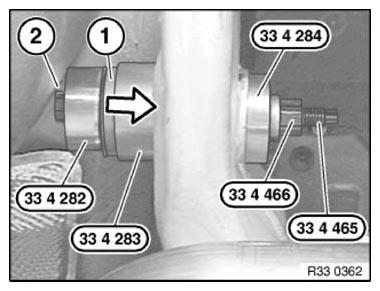

Draw in rubber mount (1) with special tools 33 4 282 , 33 4 283 , 33 4 284 , 33 4 466 , 33 4 465 2 and as far as it will go.

Fig 3: Inserting Rubber Mount Using Special Tool

Courtesy of BMW OF NORTH AMERICA, INC.
