33 17... Replacing rubber mount (with hydraulic damping)

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Pulling out rubber mount

Pull out rubber mount with special tools 33 4 351 , 33 4 281 , 33 4 466 and 33 4 465 .

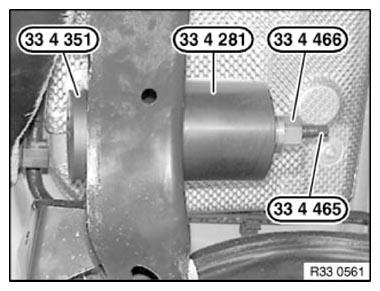

Fig 1: Pulling Out Rubber Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Installing rubber mount

IMPORTANT: Coat bearing bush in rear axle support and new rubber mount with Circo Light.

Draw in rubber mount with end shown from front into rear axle carrier. In so doing, make sure that the arrows on the rubber mount point upwards.

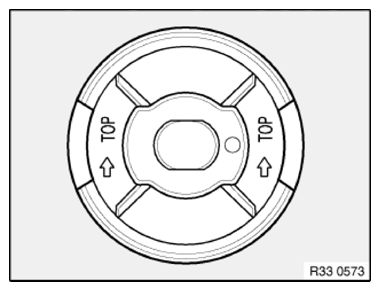

Fig 2: Identifying Rubber Mount Installation Position

Courtesy of BMW OF NORTH AMERICA, INC.

Allign special tool 33 4 358 with rubber mount using openings.

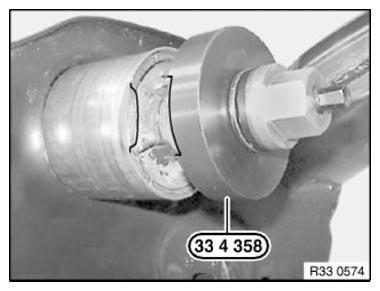

Fig 3: Aligning Special Tool With Rubber Mount Using Openings

Courtesy of BMW OF NORTH AMERICA, INC.

Pull on rubber mount (1) with special tools 33 4 357 , 33 4 358 , 33 4 466 and 33 4 465 as far as it will go.

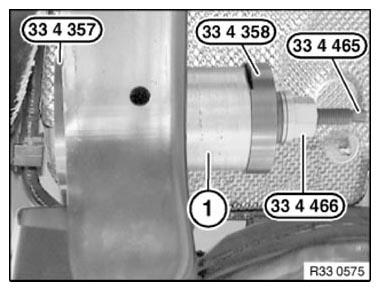

Fig 4: Pulling On Rubber Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.
