33 17 004 Replacing all front rubber mounts for rear differential mounting

WARNING: This page is about a different variant/trim than selected.

Special tools required:

Necessary preliminary tasks

Withdrawing front rubber mount

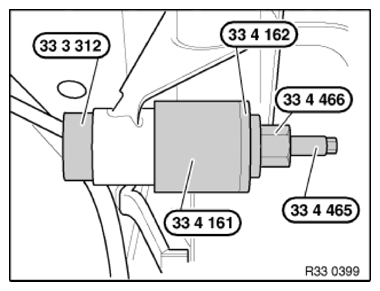

Remove front rubber mount with special tools 33 3 312 , 33 4 161 , 33 4 162 , 33 4 466 and 33 4 465 .

NOTE: The milled recess of special tool 33 4 161 must point upward toward the rear axle support.

Fig 1: Removing Front Rubber Mount Using Special Tools

Courtesy of BMW OF NORTH AMERICA, INC.

Installing front rubber mount

IMPORTANT: Coat bearing bushing in rear axle carrier and front rubber mount with Circolight.

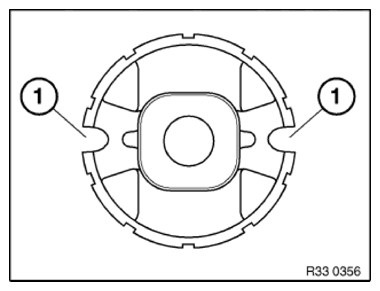

Front rubber mount must be aligned by way of slots (1) to vehicle transversal direction.

Fig 2: Identifying Front Rubber Mount Slots

Courtesy of BMW OF NORTH AMERICA, INC.

Insert front rubber mount in special tool 33 4 311 .

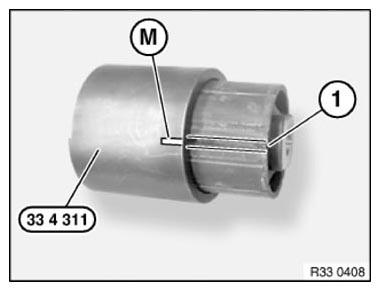

Align front rubber mount so that side slots (1) line up with marking (M) on tool.

Fig 3: Aligning Front Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

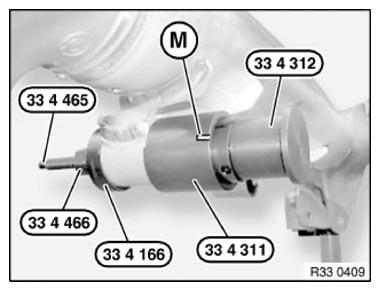

Draw in front rubber mount as far as it will go using special tools 33 4 465 , 33 4 466 , 33 4 166 , 33 4 311 and 33 4 312 .

Fig 4: Removing Front Rubber Mount Using Tool

Courtesy of BMW OF NORTH AMERICA, INC.
