33 32 180 Removing and installing/replacing left or right toe arm

WARNING: This page is about a different variant/trim than selected.

NOTE: If the toe arm is detached from the rear axle support/wheel carrier, it is necessary after reinstallation to carry out a wheel/chassis alignment check.

Necessary preliminary tasks

Remove REAR WHEEL .

If necessary, open cover (1) on stoneguard (2).

Mark position of eccentric bolt to rear axle support.

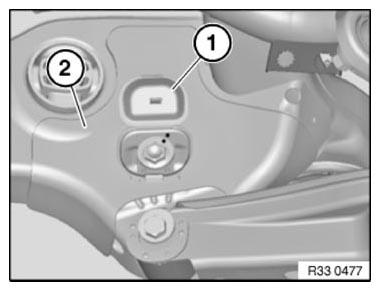

Fig 1: Identifying Stoneguard And Open Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Release bolt.

Tightening torque 33 32 8AZ .

Installation:

If necessary, turn toe arm by hand.

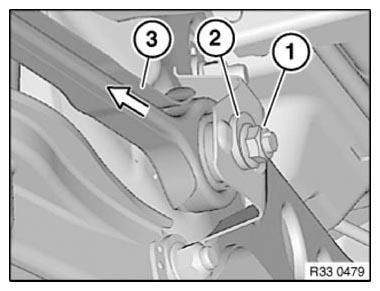

Fig 2: Locating Toe Arm Mounting Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1) and remove eccentric washer (2).

Tightening torque 33 32 7AZ .

Unscrew eccentric bolt towards front and remove toe arm (3).

Installation:

Bolt head points in direction of travel.

Reinstall eccentric washer.

Replace self-locking nut.

Align eccentric bolt to rear axle support by means of marking.

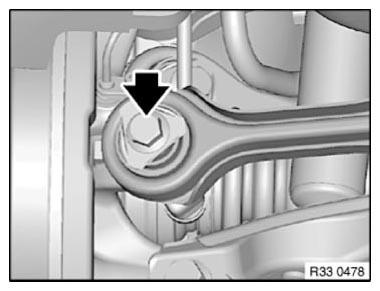

Fig 3: Removing Eccentric Washer

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform wheel/chassis alignment check . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
