33 32 021 Replacing left or right trailing arm

WARNING: This page is about a different variant/trim than selected.

NOTE: If the trailing arm is detached from the rear axle support/wheel carrier, it is necessary after reinstallation to carry out a wheel/chassis alignment check.

Release nuts (1, 3).

Tightening torque (on rear axle support) 33 32 1AZ .

Tightening torque (on wheel carrier) 33 32 2AZ .

Unscrew bolts.

Remove trailing arm (2) downward.

Installation:

Note insertion direction of bolts.

Replace self-locking nuts.

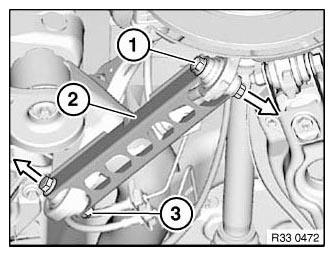

Fig 1: Removing Trailing Arm Using Tool

Courtesy of BMW OF NORTH AMERICA, INC.

After installation:

Perform wheel/chassis alignment check . See 32 00 150 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH VEHICLE LOAD UP TO DESIGN POSITION or 32 00 155 KDS CHASSIS/WHEEL ALIGNMENT CHECK WITH RIDE HEIGHT MEASUREMENT WITHOUT VEHICLE LOAD .
