41 00... Frame Alignment Control Body Dimensions

Dimensions in mm.

Measurement tolerances:

• ≤ 1000 mm ± 1.5 mm
• ≥ 1000 mm ± 2.5 mm

The control points shown serve to check the body and the straightening attachment.

The specified dimensions/measurements always refer to the centrepoint of the bore/screw.

Under Body View 1

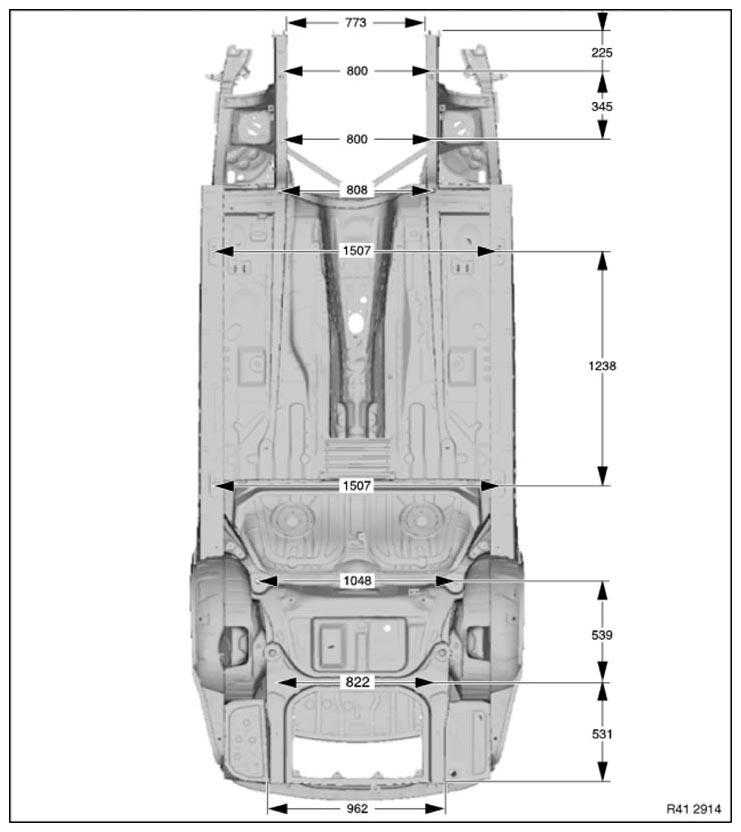

Fig 1: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 1)

Courtesy of BMW OF NORTH AMERICA, INC.

Under Body View 2

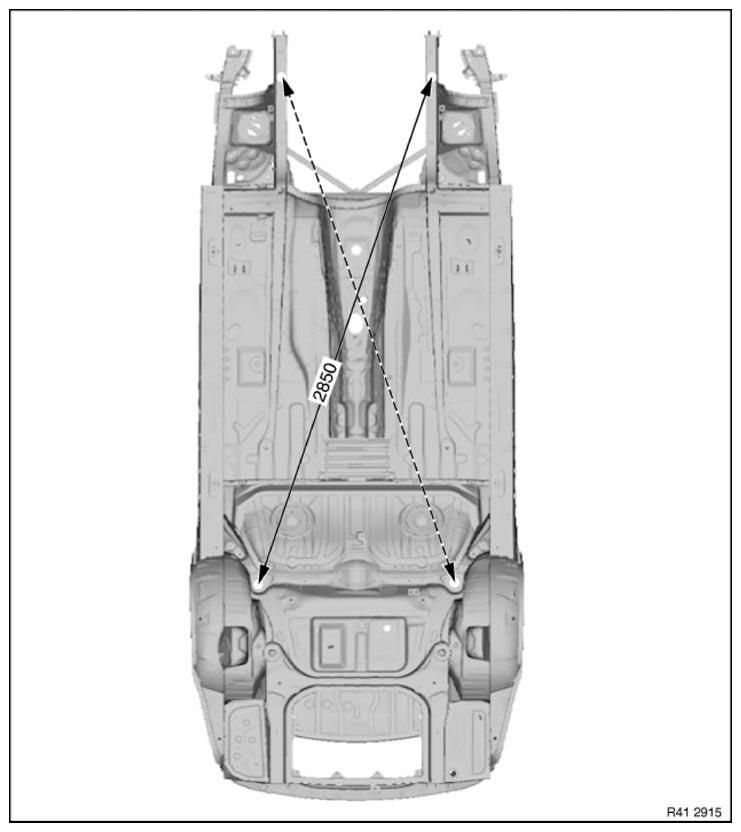

Fig 2: Under Body Frame Alignment Control Dimensions And Measurement Points (Under Body View 2)

Courtesy of BMW OF NORTH AMERICA, INC.

Top View, Front End

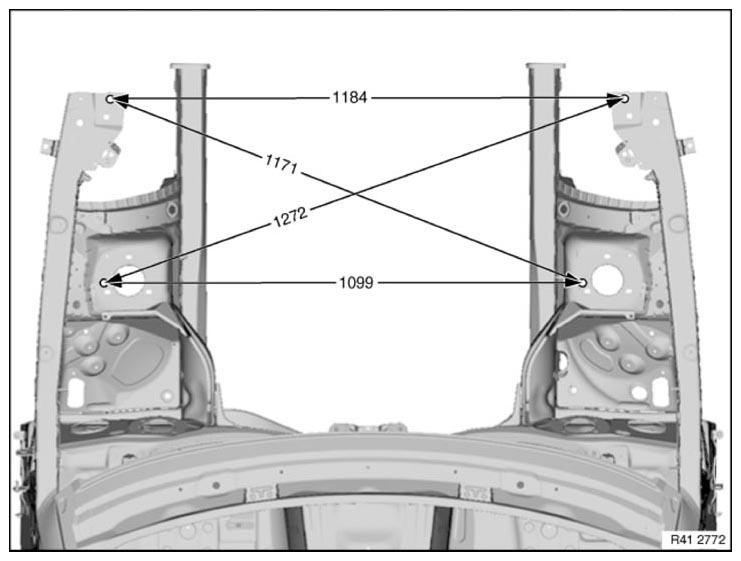

Fig 3: Engine Compartment Under Body Frame Alignment Control Dimensions And Measurement Points (Top View, Front End)

Courtesy of BMW OF NORTH AMERICA, INC.

The specified dimensions refer to removed assemblies.

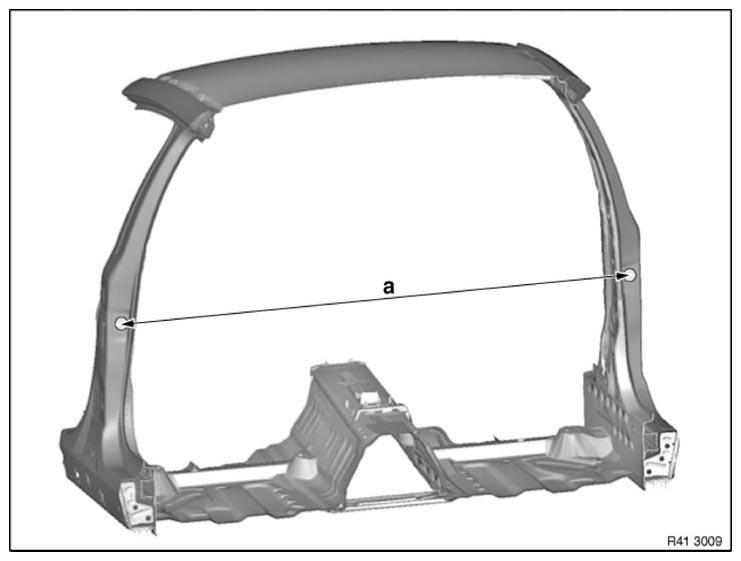

View, B-Pillar (Saloon And Touring Only)

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement 1551 mm between screw-on points of door brakes.

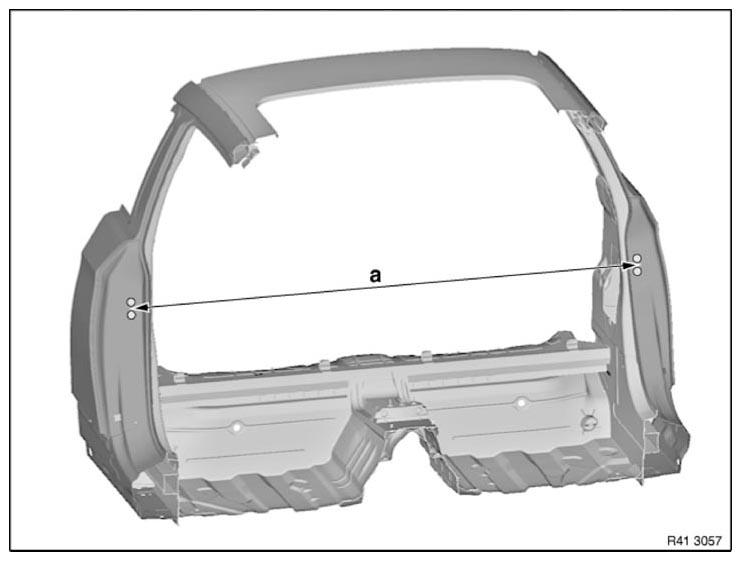

View, B-Pillar (Coupe Only)

Courtesy of BMW OF NORTH AMERICA, INC.

Measurement 1543 mm between screw-on points of lock strikers.
