11 12 040 Removing and installing all ignition coils and injector wells (N55)

Necessary preliminary work

• Remove CYLINDER HEAD COVER .
• Remove all INJECTORS .

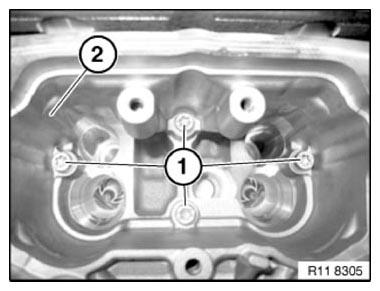

Release screws (1).

Tightening torque: 11 12 8AZ .

Fig 1: Identifying Screws

Courtesy of BMW OF NORTH AMERICA, INC.

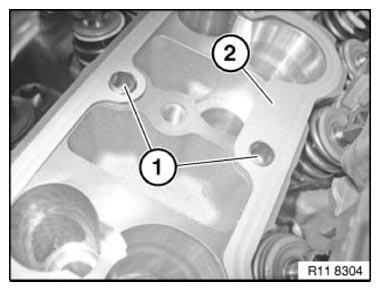

Check fitting bushes (1) for damage.

Installation note:

Replace gasket (2).

Fig 2: Identifying Bushes And Gasket

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
