11 36 655 Removing and installing/replacing both solenoid valves (N55)

IMPORTANT: On removing and installing the VANOS solenoid valve (intake) and VANOS solenoid valve (exhaust), adhere to conditions of absolute cleanliness.
Possible malfunction if there is dirt contamination in the valves:

Irregular operation
OBD fault entry
Exhaust gas emission characteristics.
Low engine performance

Necessary preliminary tasks:

Remove ignition coil cover.

Disconnect plug connection (1) on VANOS intake solenoid valve.

Disconnect plug connection (2) on VANOS exhaust solenoid valve.

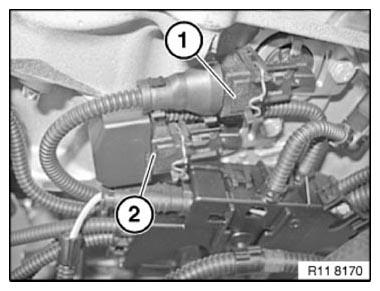

Fig 1: Identifying Plug Connections On VANOS Solenoid Valves

Courtesy of BMW OF NORTH AMERICA, INC.

Release screw (2).

Remove VANOS intake solenoid valve (1) with holder towards the front.

Release screw (3).

Move VANOS exhaust solenoid valve (4) with holder approx. 10 millimeters towards the front

Tightening torque 11 36 3AZ .

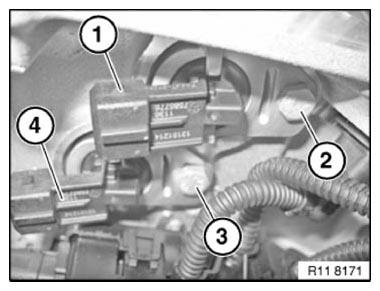

Fig 2: Identifying VANOS Solenoid Valves And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Turn the VANOS exhaust solenoid valve (1) approx. 90° in direction of arrow until it can be removed from the front on engine wiring harness.

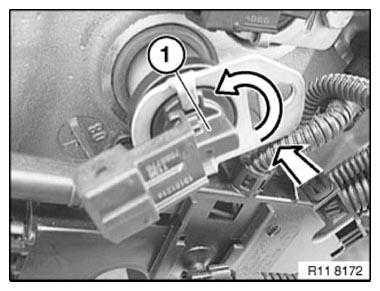

Fig 3: Turning VANOS Exhaust Solenoid Valve

Courtesy of BMW OF NORTH AMERICA, INC.

Remove O-ring (2).

Remove support ring (1).

Installation note:

Replace support and O-rings.

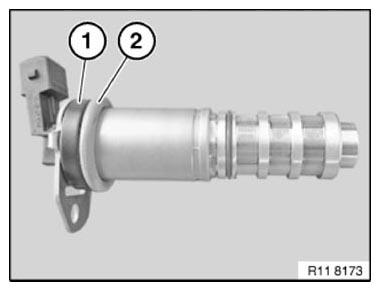

Fig 4: Identifying Support Ring And O-Rings

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.

Check function of Digital Engine Electronics.
