11 22 513 Replacing roller bearing for dual-mass flywheel

Special tools required:

NOTE: Flywheel removed!

Using hydraulic press (1) and special tool 21 2 051, press out dual-mass flywheel downwards on engine side.

IMPORTANT: Risk of damage:
Roller bearing must not be driven out.

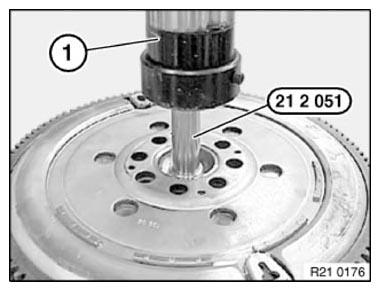

Fig 1: Removing Dual-Mass Flywheel

Courtesy of BMW OF NORTH AMERICA, INC.

Push roller bearing (2) onto special tool 21 2 052.

Using hydraulic press (1), press roller bearing into dual-mass flywheel as far as it will go on clutch side.

IMPORTANT: Risk of damage:
Observe press-in instruction:

Roller bearing must not be driven in.
Roller bearing mounting force/travel monitored:
Min. 2000N 1 mm before end of pressing in.

Max. 15000N during entire press-in procedure.

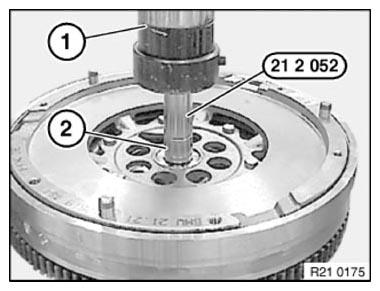

Fig 2: Pushing Roller Bearing Onto Special Tool 21 2 052

Courtesy of BMW OF NORTH AMERICA, INC.

Special tools required:

NOTE: Flywheel removed!

Position special tool 11 2 010 in roller bearing.

Twist out roller bearing with special tool 11 2 343.

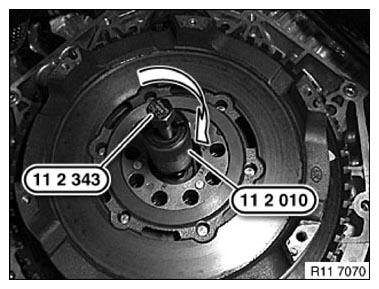

Fig 1: Positioning Special Tool 11 2 010 In Roller Bearing

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble special tools 11 2 350 and 00 5 500 .

Drive in roller bearing with special tools 11 2 350 and 00 5 500 in direction of arrow as far as it will go.

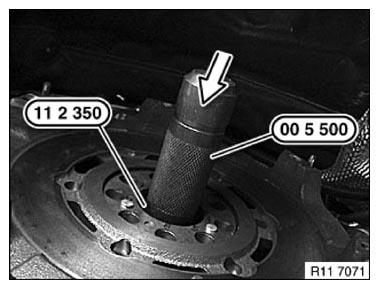

Fig 2: Driving In Roller Bearing Using Special Tools 11 2 350

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
