11 00 Mounting engine on assembly stand (N55)

Special tools required:

00 2 300
11 8 541
11 8 542

IMPORTANT: Aluminium screws/bolts must be replaced each time they are released.
Aluminium screws/bolts are permitted with and without color coding (blue).
For reliable identification:
Aluminium screws/bolts are not magnetic.
Jointing torque and angle of rotation must be observed without fail (risk of damage).

Necessary preliminary tasks:

Remove ENGINE .

Use special tool 11 8 541 to mount engine on special tool 00 2 300 .

Mount engine or engine block with special tool 11 8 542 on 11 8 541 .

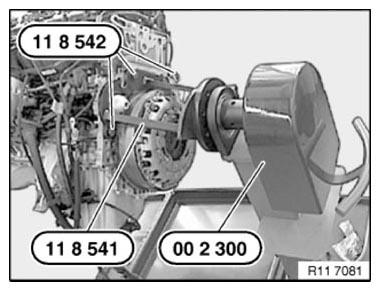

Fig 1: Mounting Engine/Engine Block Using Special Tool (11 8 542)

Courtesy of BMW OF NORTH AMERICA, INC.
