2211001 Replacing right engine mount (M57T2)
Necessary preliminary tasks
- Secure engine in INSTALLATION POSITION
- Remove underbody protection

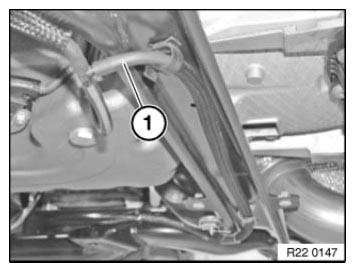

Disconnect vacuum hose (1) at T-piece and unclip from brackets.
Remove engine mount with vacuum hose.
Installation:
Ensure that vacuum hose can move freely.

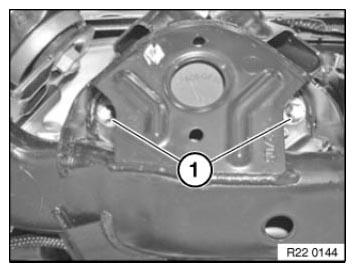

Release screws (1) and remove engine mount.
Tightening torque 22 11 1AZ in 22 11 ENGINE MOUNTING .
NOTE:
Illustration shows: AWD
Installation:
Rubber section (1) of engine mount must point to middle of vehicle.
Engine mount designations:
Right engine mount
- Even component number
Left engine mount
- Odd component number
