1353330 Replacing all leakage oil lines (M57T2)
Special tools required
- 13 0 170
Necessary preliminary tasks
- Switch off ignition
- Remove INTAKE AIR MANIFOLD
IMPORTANT:
It is essential to adhere to conditions of absolute cleanliness when working on the fuel system.
- Do not allow any dirt particles or foreign bodies to get into the system
- Use only fluff-free cloths
- Remove all traces of dirt before removing pipes or individual components

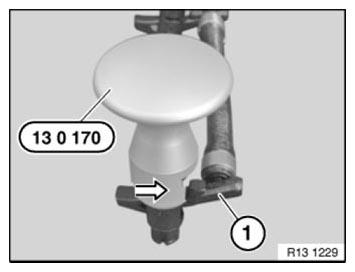

Push special tool 13 0 170 in direction of arrow onto connection (1).
Illustration shows injector removed:
Following procedure applies to all cylinders:

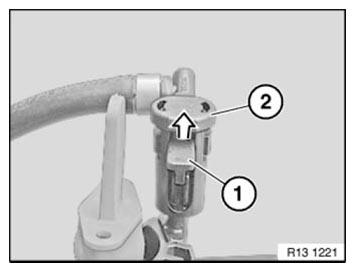

Grip connection for leakage oil line (1).
Release lock (2) with special tool 13 0 170 in direction of arrow.
Illustration shows injector removed:
Following procedure applies to all cylinders:

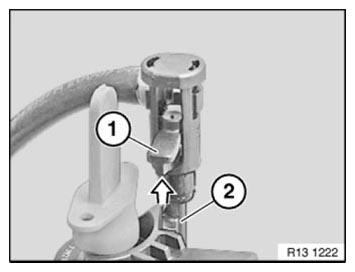

Detach connection (1) for leakage oil line in direction of arrow from injector (2).
Installation:
Replace sealing rings on injector.

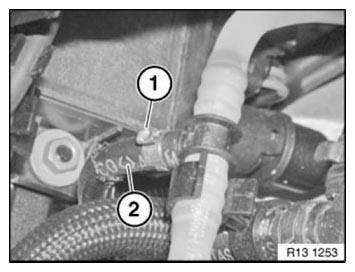

Release clamp (1).
Carefully detach leakage oil line (2).
