11 74 508 Replacing pressure transducer for exhaust turbocharger (M57T2)

Necessary preliminary tasks

Release screw (1).

Loosen screw (2).

Turn retaining ring in direction of arrow.

Remove pressure pipe.

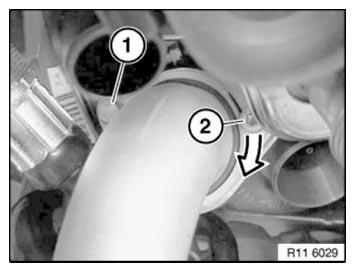

Fig 1: Turning Retaining Ring

Courtesy of BMW OF NORTH AMERICA, INC.

Release vacuum line (1).

Release vacuum line (2).

Unscrew bolt (3).

Remove vacuum reservoir (4).

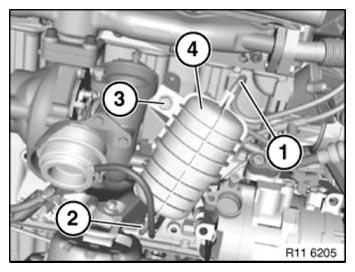

Fig 2: Identifying Vacuum Line, Bolt And Vacuum Reservoir

Courtesy of BMW OF NORTH AMERICA, INC.

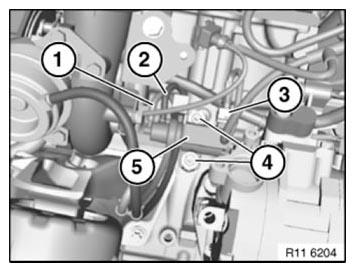

Release vacuum line (1).

Release vacuum line (2).

Disconnect plug connection (3).

Unscrew nuts (4).

Remove pressure transducer for EGR turbocharger.

NOTE: For purposes of clarity, illustration shows A/C suction line removed.

Fig 3: Identifying Vacuum Line, Plug Connection And Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Assemble engine.
