1331025 Checking fuel return pressure (M57T2, M47T2)

Special tools required

NOTE:

Recycling

Catch and dispose of escaping fuel in a suitable container.

Observe country-specific waste-disposal regulations.

Disconnect quick-release coupling (1) from return line (2).

Connect special tools 13 6 030 and 13 5 222.

Connect pressure sensor (3) of DIS Tester.

Insert special tool 13 6 030 between lines (1) and (2).

Switch on ignition. Read off fuel return pressure. Refer to TECHNICAL DATA .

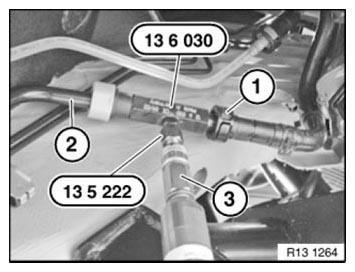

Fig 1: Identifying Special Tools (13 6 030 And 13 5 222)

Courtesy of BMW OF NORTH AMERICA, INC.
