1711031 Removing and installing/replacing fan cowl with electric fan

Necessary preliminary tasks

• Read fault memory of DDE control unit
• Switch off ignition
• Remove acoustic cover

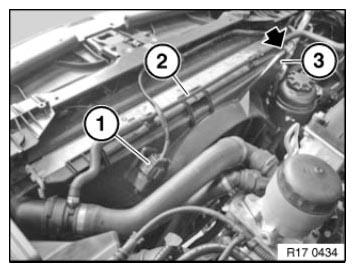

Unlock plug (1) and remove.

Unclip line (2) from fan cowl.

Detach cable tie.

Release screw (3).

Fig 1: Identifying Fan Cowl Plugs, Connecting Lines And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

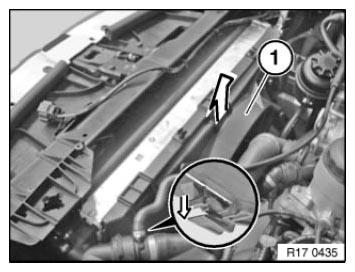

Unlock catch in direction of arrow.

Remove fan cowl (1) towards top.

Fig 2: Removing Fan Cowl Towards Up

Courtesy of BMW OF NORTH AMERICA, INC.
