2611090 Removing and installing/replacing front centering mount for propeller shaft

Special tools required

Necessary preliminary tasks:

Completely fill centering hole (1) with viscous grease.

Drive special tool 11 1 310 with a plastic hammer into centering hole.

The centering mount (1) is forced out of the propeller shaft by the pressure on the grease filling.

If necessary, top up grease repeatedly.

NOTE: To drive out the mount, you can also fill the centering bore with water instead of grease.

Fig 1: Driving Special Tool (111310) With A Plastic Hammer Into Centering Hole

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove grease/water from mount bore.

Drive in centering mount (1) with special tools 11 2 030 and 00 5 500 into propeller shaft (observe protrusion).

Grease centering mount.

Grease: see PROPELLER SHAFT - OPERATING FLUIDS .

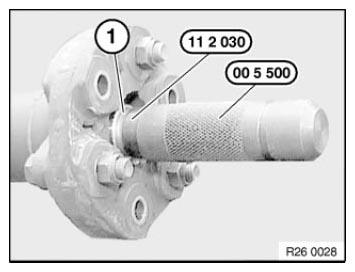

Fig 2: Drive In Centering Mount With Special Tools (112030/005500) Into Propeller Shaft
Courtesy of BMW OF NORTH AMERICA, INC.

Installation

Observe protrusion A = 4⁺² mm of centering (1).

Fig 3: Observing Protrusion Of Centering Mount

Courtesy of BMW OF NORTH AMERICA, INC.
