4163003 Replacing Cover Bowl

Necessary preliminary tasks:

Unscrew nut (1).

Installation:

Make sure seal (2) is correctly seated.

Fig 1: Identifying Seal And Nut

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clean contact surface on body and grounding lead on fuel filler pipe.

Ground connection must be guaranteed.

Release nuts (1).

Fig 2: Identifying Nuts

Courtesy of BMW OF NORTH AMERICA, INC.

Turn cover (1) through approx. 45° and lever out in direction of arrow.

Fig 3: Removing Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Press retaining strap (1) inwards and remove.

Remove cover (2).

Remove rubber pad (3).

Insert a suitable tool through bores (3) and release catches.

Installation:

Make sure seal (4) is correctly seated.

Fig 4: Removing Retaining Strap

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on ejector (2) must not be damaged.

Check protective cap (3) for correct seating.

Fig 5: Identifying Catches On Ejector

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Locks (1) on left/right of cover (2) must not be damaged.

Fig 6: Identifying Locks On Cover

Courtesy of BMW OF NORTH AMERICA, INC.

Close flap (1).

Twist cover bowl (2) in direction of arrow out of side panel and remove.

Fig 7: Removing Cover Bowl

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

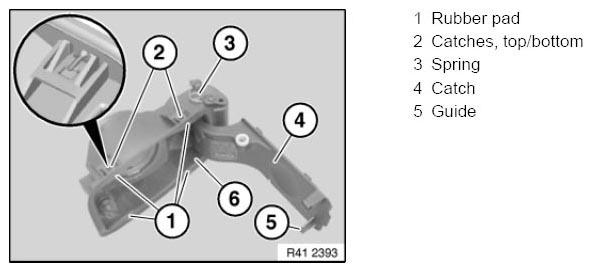

Following parts on cover bowl (6) must not be damaged or missing:

Fig 8: Identifying Spring, Catch, Guide And Rubber Pad

Courtesy of BMW OF NORTH AMERICA, INC.
