5121... Overview of front door locks

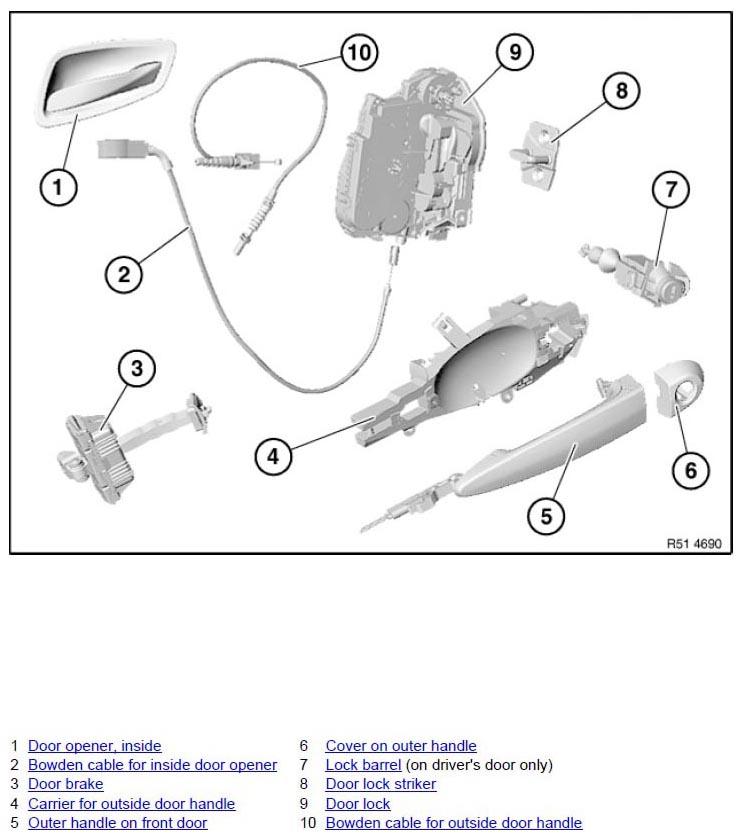

Fig 1: Overview Of Front Door Locks

G06853981

Courtesy of BMW OF NORTH AMERICA, INC.
