Home >> BMW >> 2011 >> 335d >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Body Equipment - Repair >> 5100 General >> 5100.. Overview of rear door

5100.. Overview of rear door

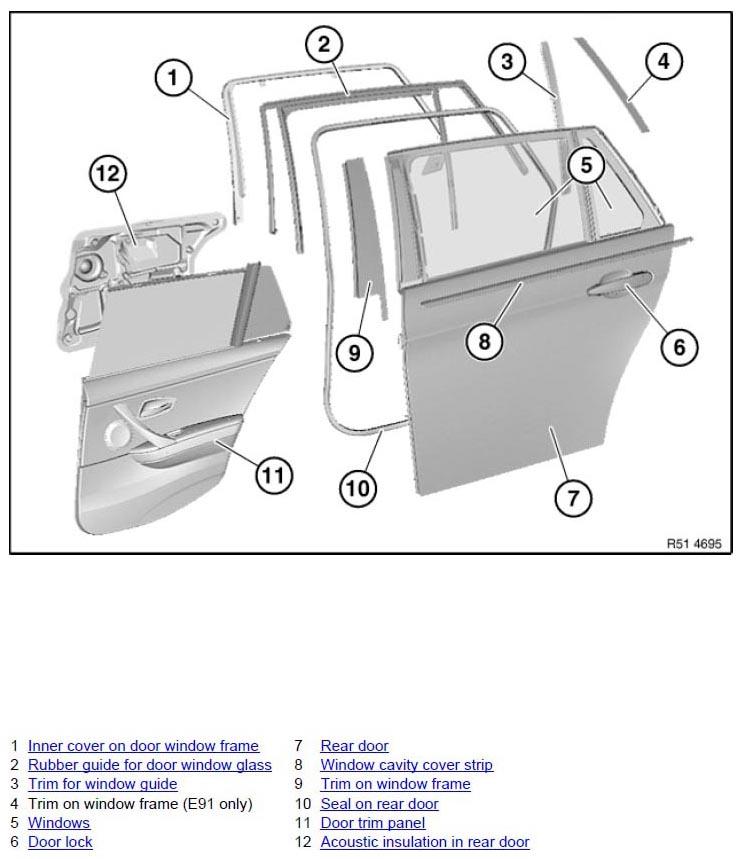

Fig 1: Overview Of Rear Door

G06853760

Courtesy of BMW OF NORTH AMERICA, INC.
