25 11 071 Replacing knob for gearshift lever

WARNING: Gearshift lever knob and gearshift lever cover are one part.

Press installation frame of gaiter (1) together a little and remove gaiter from center console.

NOTE: Do not twist gearshift lever knob during removal as this would cause the anti-twist lock in the knob to shear off.

Tug firmly to remove button (2).

Installation note:

Fit gearshift lever knob on shift lever, align and press on until it snaps noticeably into place.

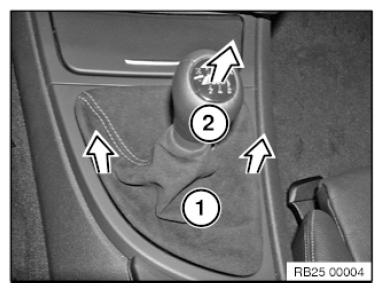

Fig 1: Removing Gaiter From center Console

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Retaining lugs must not be damaged.

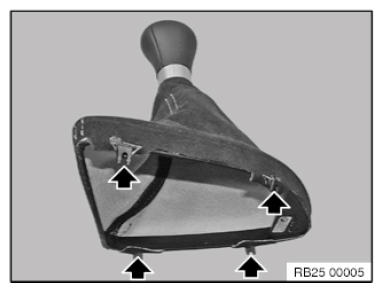

Fig 2: Locating Retaining Lugs

Courtesy of BMW OF NORTH AMERICA, INC.
