61 14 010 Removing and installing/replacing power distributor (on battery) (from 03/2007)

WARNING: Observe safety instructions . See 61 00... SAFETY INSTRUCTIONS FOR HANDLING VEHICLE BATTERY or 61 20... INFORMATION ON AGM BATTERY for handling vehicle battery.

Necessary preliminary tasks:

E81/E87:

Unclip trim (1) in direction of arrow and remove.

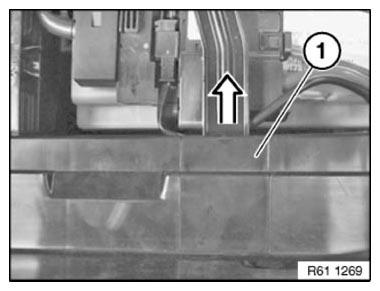

Fig 1: Removing Luggage Compartment Floor Trim

Courtesy of BMW OF NORTH AMERICA, INC.

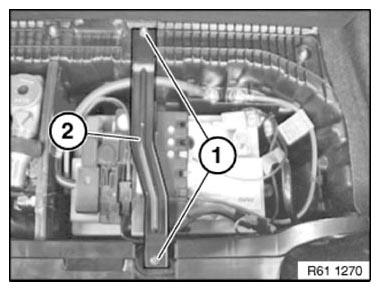

Release screws (1) and remove bracket (2). Tightening torque 61 14 1AZ .

Fig 2: Identifying Bracket And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

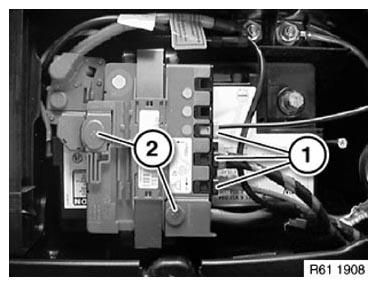

Disconnect plug connection (1).

If necessary, release wiring harness fasteners from power distributor.

Open covers (2) and release nuts underneath.

Tightening torque

61 21 2AZ
61 21 4AZ

Fig 3: Identifying Plug Connection
Courtesy of BMW OF NORTH AMERICA, INC.

Press locking brackets (2) downwards and unclip.

If necessary, using a screwdriver (1), expand locking bracket (2) at lower end and clip out.

Remove power distributor (3) towards top.

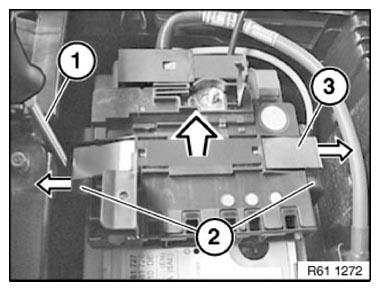

Fig 4: Removing Power Distributor Using Screwdriver
