51 12 162 Removing and installing/replacing rear bumper lower trim (M Technic aerodynamic kit)

IMPORTANT: Risk of damage!
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

Release screws (1) on bumper lower trim (2).

Unclip bumper lower trim (2) along dashed line and remove.

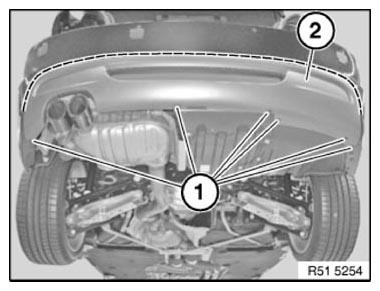

Fig 1: Identifying Bumper Lower Trim And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) must not be damaged

Replacement:

If necessary, replace TRIM (2) on bumper lower trim

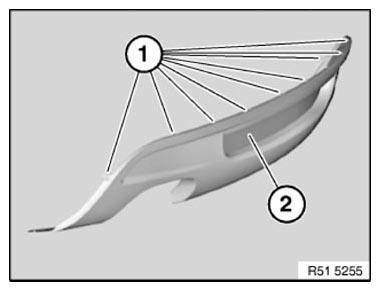

Fig 2: Identifying Trim And Catches
Courtesy of BMW OF NORTH AMERICA, INC.
