51 16 210 Removing and installing/replacing trim for selector lever
IMPORTANT:
Risk of damage!
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.
Necessary preliminary work:
- Remove GAITER FOR GEARSHIFT LEVER
- Depending on equipment specification:
- Remove CONTROLLER
Pull trim (1) upwards and thereby release from clamps (2) and latch mechanisms (3).
Installation note:
Cables must not be jammed.
Clamps (2) and latch mechanisms (3) must not be damaged.
If replacing with controller version:

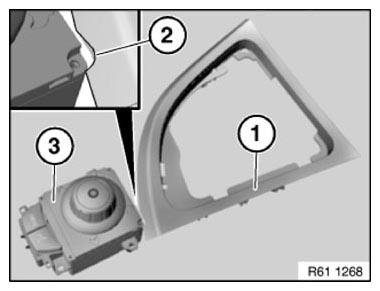

Provide trim (1) with recess (2) for controller (3).
NOTE:
Recess (2) is marked on the underside of the trim (1).
