51 11 180 Removing and installing/replacing trim grille in bumper trim

Special tools required:

• 00 9 317

Release catches (1) with special tool 00 9 317 and remove trim grille (2) from bumper trim towards front.

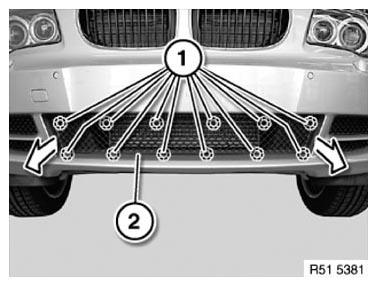

Fig 1: Removing Trim Grille

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Catches (1) on trim grille (2) must not be damaged.

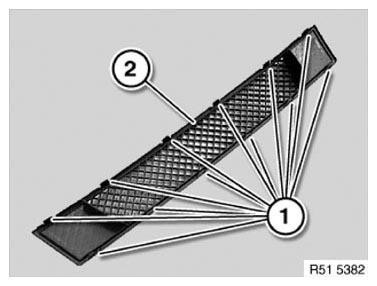

Fig 2: Identifying Catches On Trim Grille

Courtesy of BMW OF NORTH AMERICA, INC.
