51 31 021 Removing and installing/replacing rubber frame for windscreen

IMPORTANT: Rubber frame (1) features an aluminum section inlay (2).
Carefully unwind rubber frame (1) (windscreen breakage).

NOTE: Tear-off lip (5) may be stuck to adhesive (4).
When rubber frame (1) is removed, tear-off lip (5) can tear off and remain in vehicle.

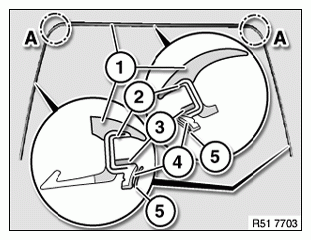

Fig 1: Removing Rubber Frame

Courtesy of BMW OF NORTH AMERICA, INC.

3 Windscreen

6 Bridge

7 Pinched butyl

8 Sealing lip fitted at side only

Installation:

Clean cutout.

Area (A) is fitted with acoustic foam material.

Pay attention to center marking on rubber frame (1) and windscreen.

Replacement of rubber frame without windscreen removal:

Detach tear-off lip (5) from rubber frame (1).

Fig 2: Identifying Bridge And Lip From Rubber Frame Center Mark

Courtesy of BMW OF NORTH AMERICA, INC.

If adhesive leaks over tear-off lip (5) at bridge (4), this area must be cut out partially.

To facilitate installation, coat rubber frame (1) and body cutout with water.

Replacement of rubber frame with removed or new windscreen:

Fit rubber frame (1) with tear-off lip (4).

2 Aluminum strip

3 Butyl
