41 11 141 Replacing Cover For Left Or Right Frame Side Member (Partial Replacement Between A- And B-Pillars)
Read contents of BODY, GENERAL .
Remove or cover those vehicle components in the repair area which are susceptible to heat or dust.
Use only approved SPOT-WELDING APPARATUS for repairs.

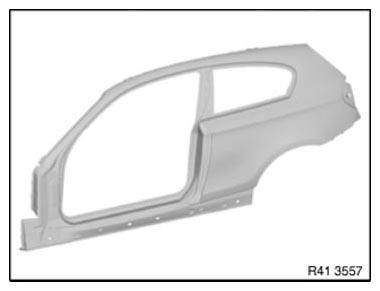

Following new body parts are required (refer to CONSUMABLES ):

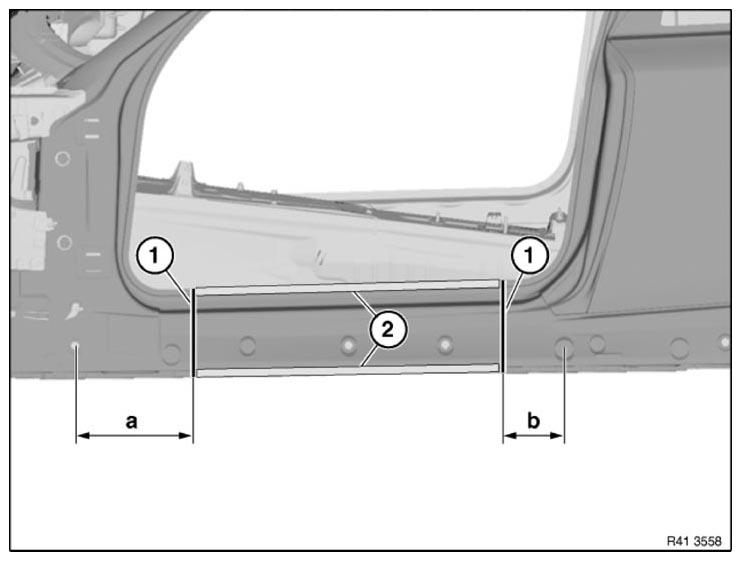

Mark severance cuts (1) in accordance with specified measurements and cut.
Measurement a = approx. 290 mm from centerpoint of 20 mm dia. hole.
Measurement b = approx. 160 mm from centerpoint of 25 mm dia. hole.
Open weld joints in areas (2).
Installation:
Weld REINFORCEMENT PLATES at all severance cuts (1).
