41 51... Replacing Front Side Doors Hinge Bushing (Door Removed)

Special tools required:

• 41 1 150
• 41 1 151
• 41 1 152

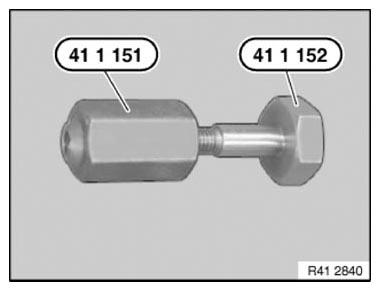

Set of special tools 41 1 150 comprises:

Bush 41 1 151

Screw 41 1 152

Courtesy of BMW OF NORTH AMERICA, INC.

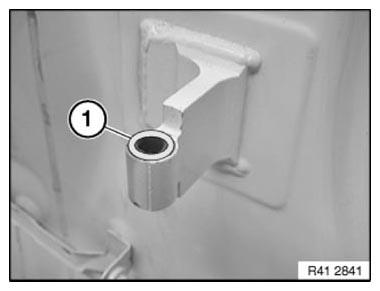

Cut off hinge bushing in area (1) with chisel.

Drive out remainder of hinge bushing with punch.

Courtesy of BMW OF NORTH AMERICA, INC.

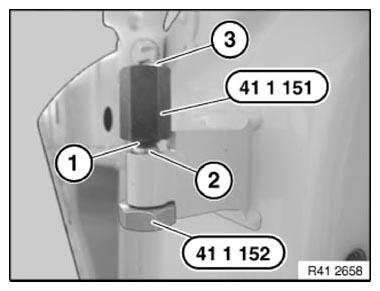

Insert screw 41 1 152 with new hinge bushing (2) into hinge.

Screw bushing 41 1 151 with flat end (3) pointing upwards onto screw 41 1 152 .

Turn bushing 41 1 151 until taper (1) borders hinge bushing.

Unscrew bushing 41 1 151 again.

Courtesy of BMW OF NORTH AMERICA, INC.

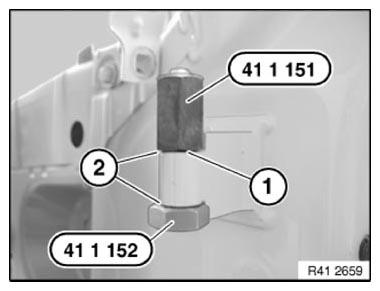

Twist bushing 41 1 151 with flat end (1) onto screw 41 1 152 .

Turn bushing 41 1 151 until gap dimensions (2) are identical.

Courtesy of BMW OF NORTH AMERICA, INC.
