41 5.... Removing And Installing Front Side Doors

IMPORTANT: Do not damage adjoining body parts.

The illustrations are schematic representations and are to be applied to the relevant vehicle type.

Open door.

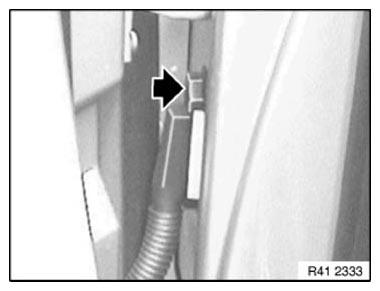

Release screw on connector frame.

Front door:

Tightening torque 41 51 4AZ .

Rear door:

Tightening torque 41 51 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Secure door against closing.

Release screw (1) on door retainer.

Front door:

Tightening torque 51 21 3AZ .

Rear door:

Tightening torque 51 21 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Secure door against falling out.

Release screws between both hinge elements at top and bottom.

Pull both screws out of hinges.

Front door:

Tightening torque 41 51 1AZ .

Rear door:

Tightening torque 41 51 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

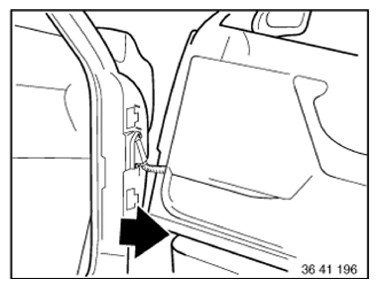

Pull out door sideways and place it on a suitable surface.

Courtesy of BMW OF NORTH AMERICA, INC.

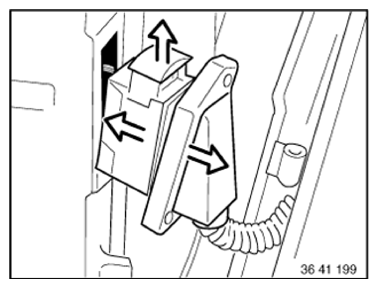

Pull plug connection from door pillar, unlock by pulling out bar and detach.

Installation:

If necessary, adjust DOOR .

Courtesy of BMW OF NORTH AMERICA, INC.
