41 61 571 Removing And Installing Or Replacing Left Hinge For Engine Compartment Lid, (For Vehicles With Active Pedestrian Protection AFGS)
WARNING:
Adhere to the following SAFETY INFORMATION
so as to avoid a danger of injury by the actuator.
The BATTERY EARTH LEAD must be clamped off prior to work on the hinge or engine compartment lid!
Risk of injury.
Support engine compartment lid in fully opened position with suitable apparatus.
The BATTERY EARTH LEAD must be clamped off prior to work on the hinge or engine compartment lid!
Risk of injury.
Support engine compartment lid in fully opened position with suitable apparatus.
Necessary preliminary tasks:
Disconnect BATTERY EARTH LEAD .
Remove ENGINE COMPARTMENT LID .

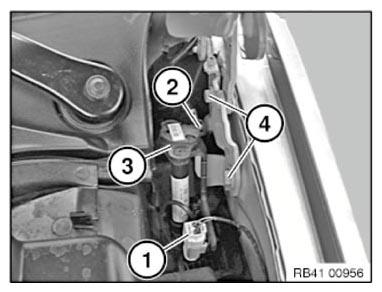

Unfasten plug connection (1) and disconnect.
Release bolt (2) and remove actuator (3).
Tightening torque 41 61 4AZ .
Release screws (4) and remove hinge.
Tightening torque 41 61 2AZ .
Installation note:
ADJUST hinge together with engine compartment lid.
