63 99 145 Replacing bulb for front left (or right) side lights (xenon) (from 03/2007)

WARNING: Version with xenon headlights: Danger to life due to high voltage! Therefore, before removing, disconnect all components from the voltage supply (lighting system and ignition off).
Work on the entire xenon lighting system (control unit, ignition unit with bulb) may only be carried out by qualified personnel.
Follow instructions for handling light bulbs (EXTERIOR LIGHTS) .

NOTE: Headlight (2) removed for purposes of clarity.

Unlock spring wire clips (1) in direction of arrow.

Remove cover from headlight (2).

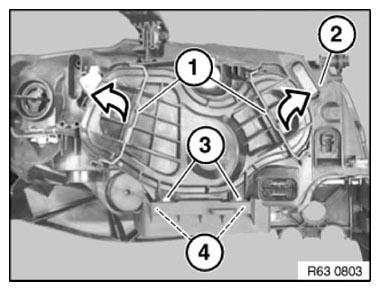

Fig 1: Removing Cover From Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure cover is correctly seated on headlight (2).

Guides (3) must be exactly seated in associated locators (4).

Disconnect plug connection (1).

Turn bulb (2) anti-clockwise and remove from headlight (3).

Fig 2: Identifying Bulb Plug Connection And Headlight

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure bulb is correctly seated and latched in headlight
Note BULB TYPE .
